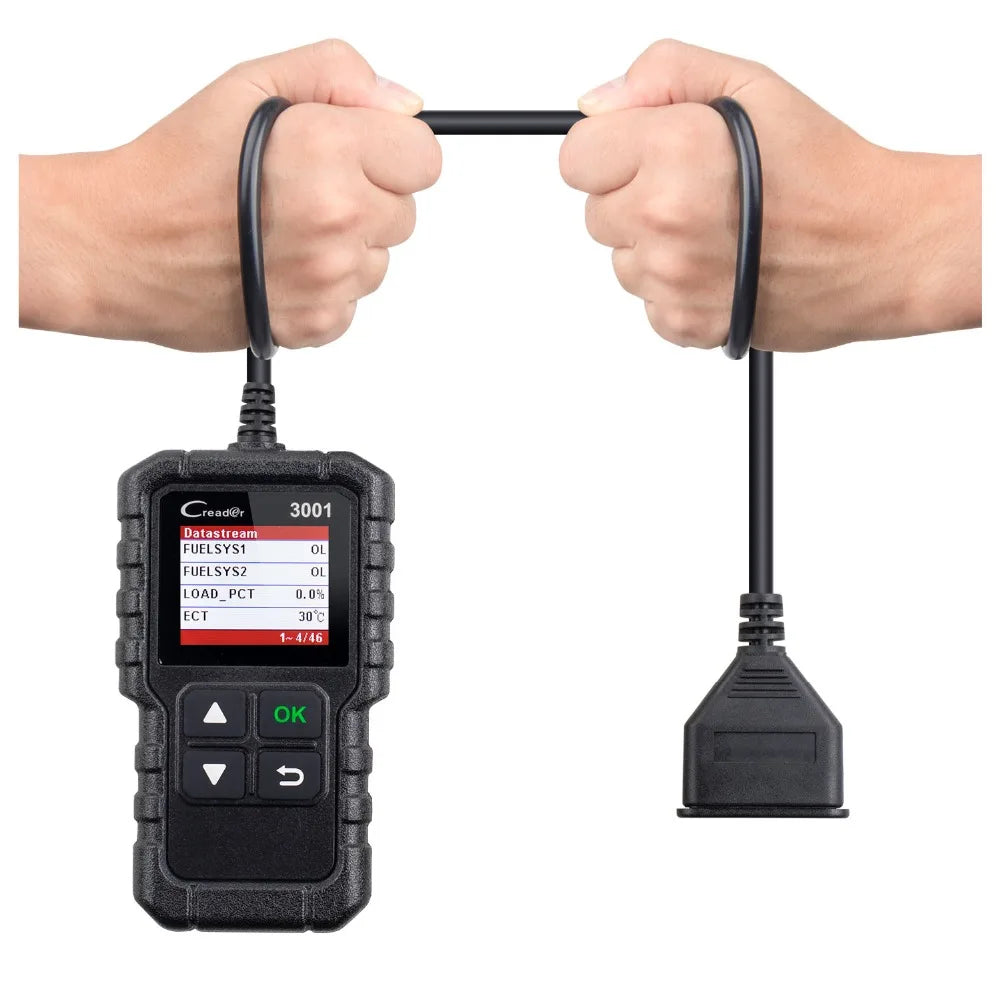

CReader 3001 OBD-II Scan Tool with O2 Sensor Testing

This OBD-II Scan Tool with O2 Sensor Testing CReader 3001 provides full OBDII and EOBD diagnostic functions. It meets protocols such as SAEJ1850, ISO9141-2, ISO14230-4, and ISO15765-4.

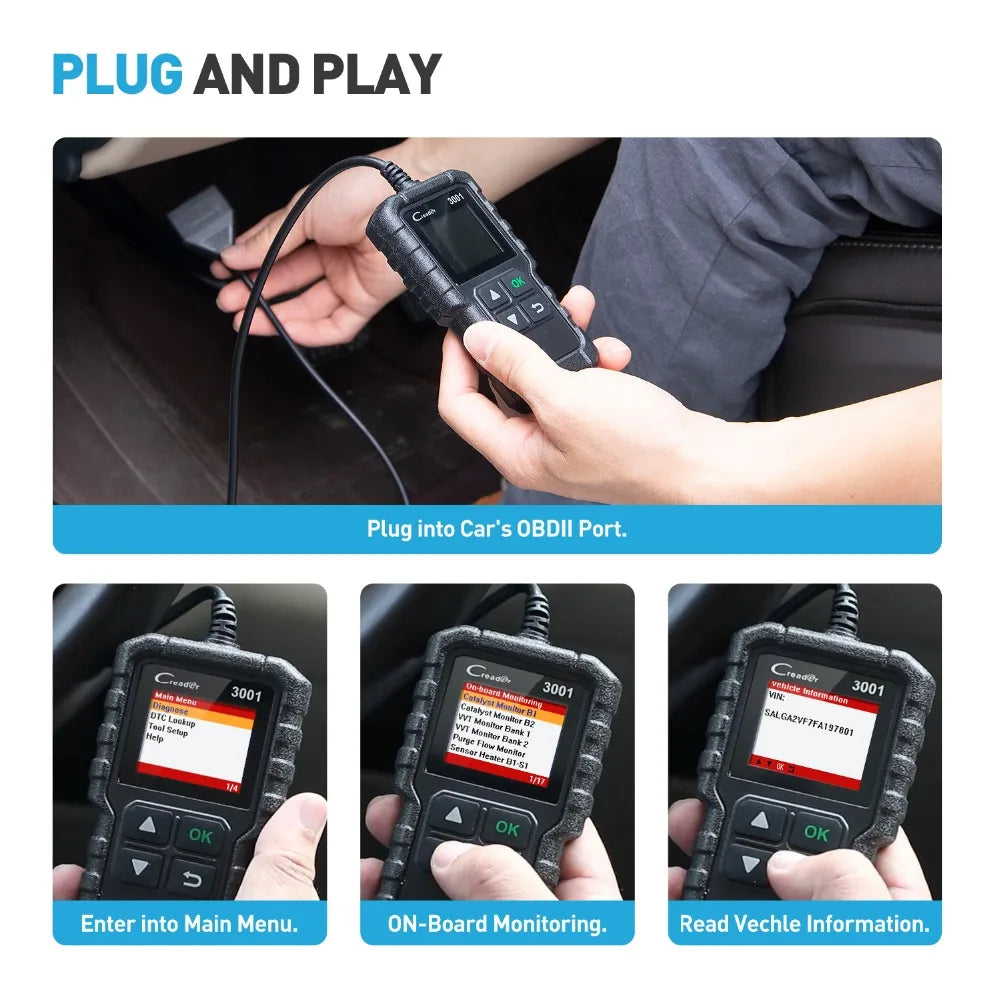

OBD Scanning Options

• Read Codes
• Clear Codes
• Read Vehicle Information
• Live Data
• Freeze Frame
• I/M Readiness
• On-Board Monitor
• EVAP system

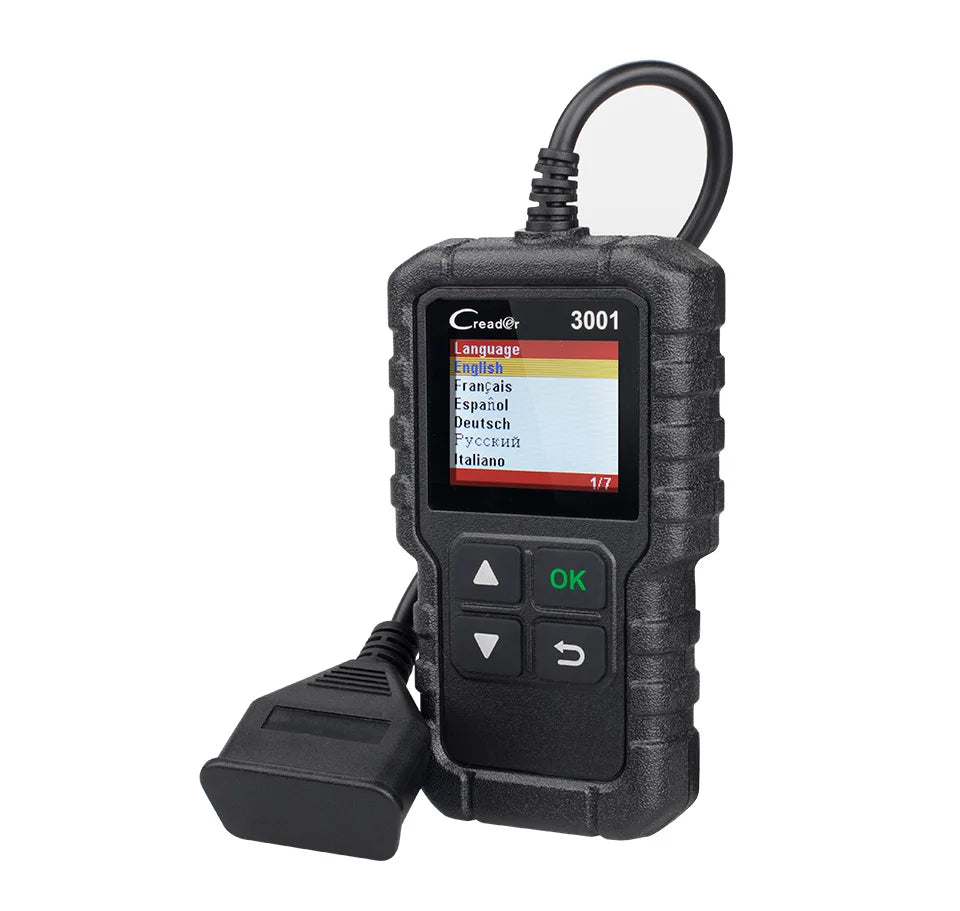

Supported Languages

• English
• French
• Russian
• Spanish
• German
• Italian
• Portuguese

How to change the language



Supported OBD 2 protocols

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Supported car models for OBD-II diagnostics:

American Cars:

*Needs Standard OBD2 Cars from 2000 to now

for Chrysler, Ford, GM, Jeep.

European Cars

*Needs Standard OBD2 Cars from 2003 to now

for Alfa Romeo,SAAB, Acura, Opel, Audi, Peugeot, RenaultBentley, Skoda, Daewoo, Benz, Daihatsu, Land Rover, BMW, Vauxhall, Citroen, Volvo, Fiat, VW, Ford, Jaguar.

Asian Cars:

*Needs Standard OBD2 Cars from 2006 to now (2009 for China)

KIA, Isuzu, Honda, Mitsubishi, Hyundai, Dacia, Lexus, Mazda, Nissan, Subaru, Suzuki, Toyota.

NOTE: Even though this scan tool is compatible with most cars, different regions adopted OBD-II at different times. The above list is not comprehensive, but meant to be more of a guide. Please check that your vehicle supports OBD-II before purchasing.

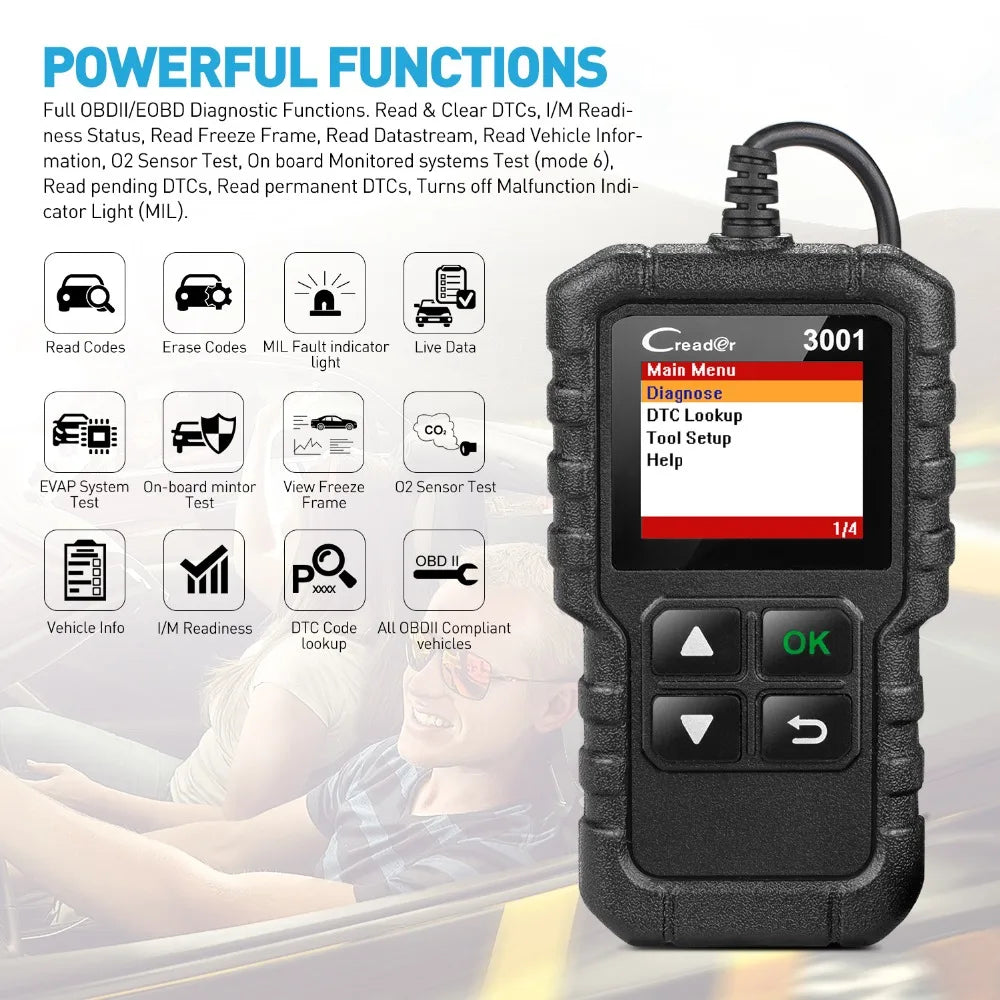

Powerful Function

 Clear Display

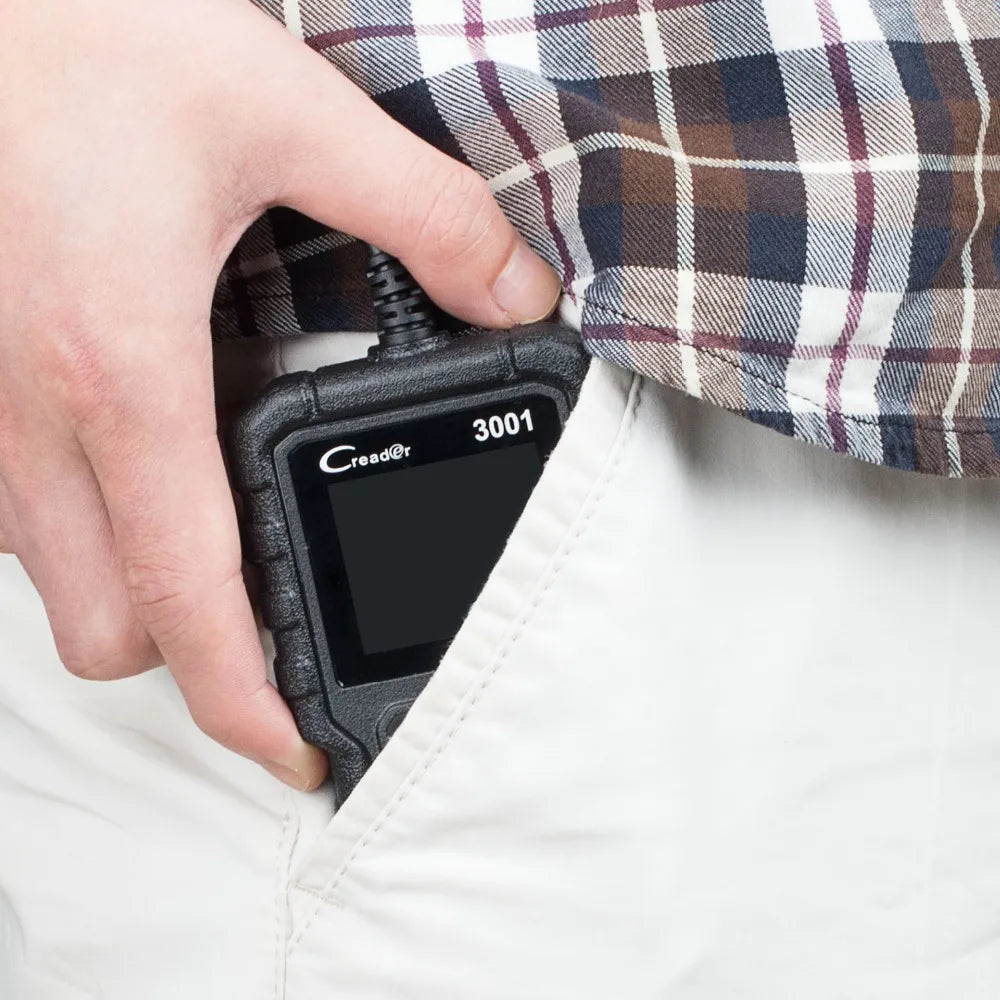

Easy to Carry

The OBD2 scanner's mini size fits comfortably in the palm of your hand. You can carry it whether in the garage or on a trip.

 USER-FRIENDLY

The dust cap will protect your OBD-II connector from dust. It is water, dirt, and oil resistant as well.

Specifications:

Screen: 1.77  "   TFT, 160*128dpi

Voltage Range: 9-18V

Operating Temperature :0℃   -50  ℃  (32  ℉  -122  ℉  )

Environment Temperature:-20  ℃  -70  ℃  (-4  ℉  -158  ℉  )

Dimension :118mm*68mm*22.3mm(4.65"  *2.68  "  *0.88  "  )

Weight:<200g

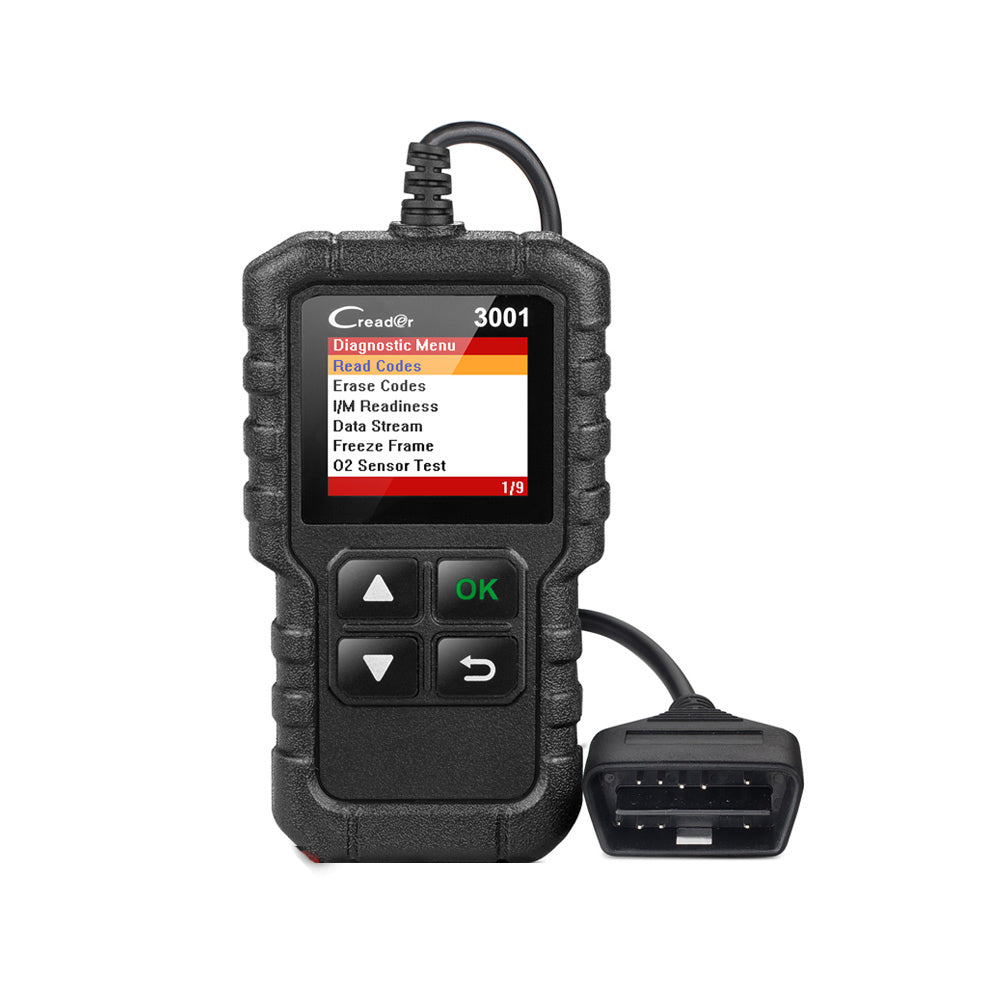

FRONT

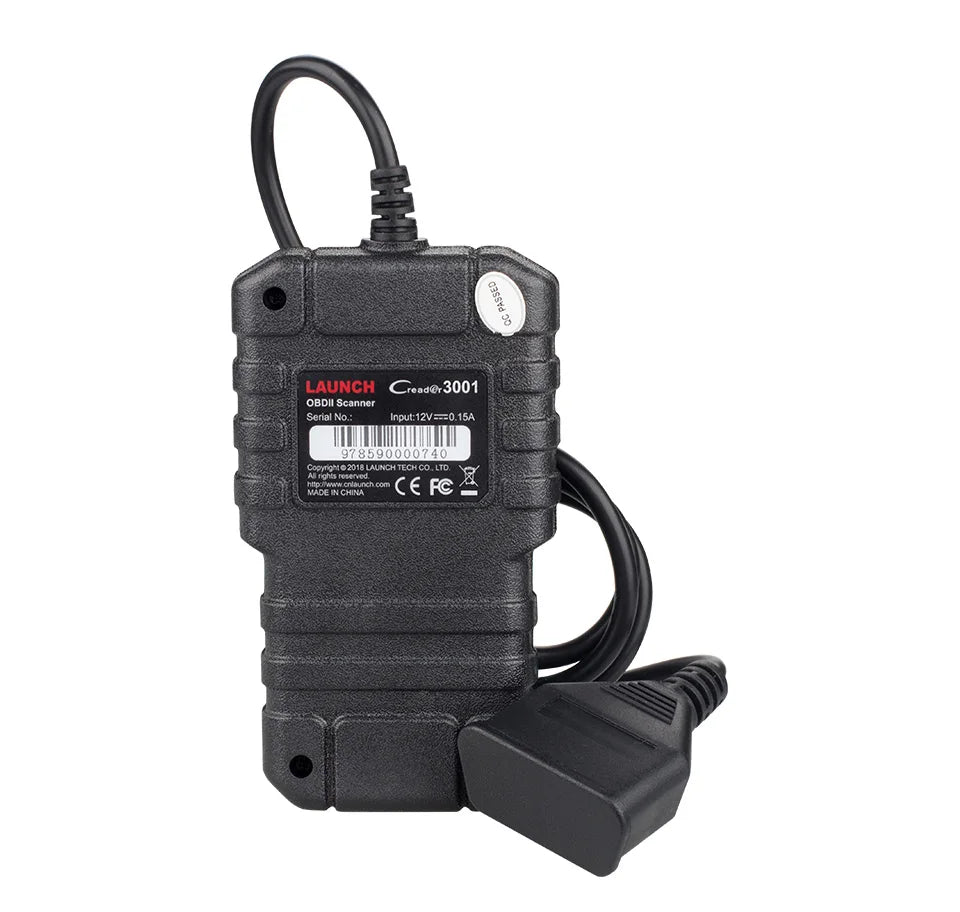

BACKSIDE WITH CAP
